Aiendiesel only offers high-quality items to ensure your engine can work smoothly.

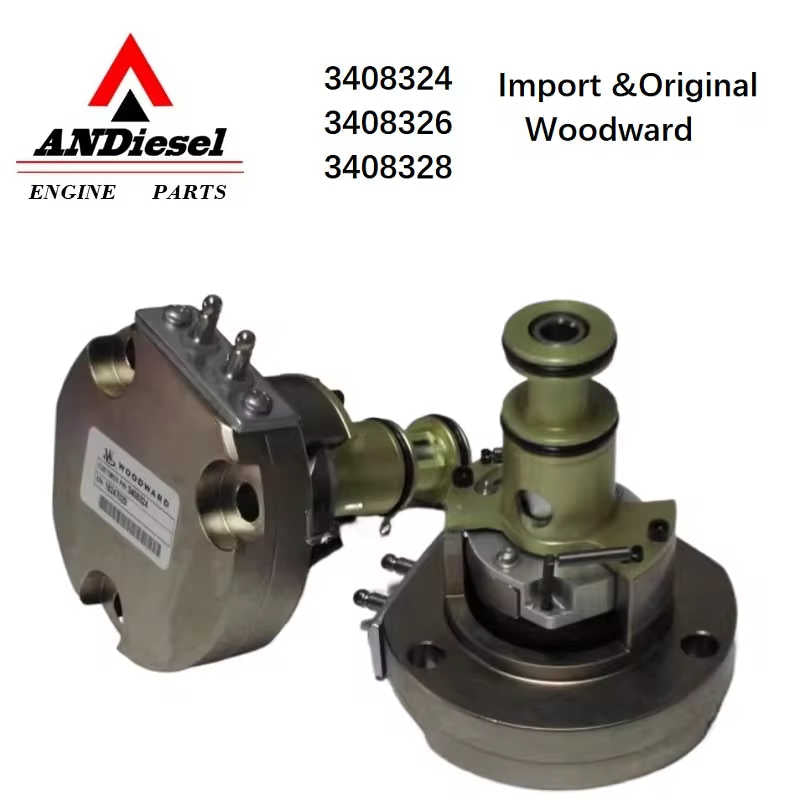

Cummins diesel engine part fuel pump actuator Woodward 3408324,3408326,3408328

Diesel Generator Engine Electronic fuel control governor Pump actuator EFC 3408324 for M11,NT855, K19,K38, N14

Diesel Fuel Pump Actuator 3408324 For Generator is a kind of Actuator for PT pump. This series actuator for the generator is an electric design special for the PT pump of the diesel generator. The power range is from 0KW -500KW.

3408324 electric actuator

Part NO:3408324

Type: Normally closed ,small capacitor

Nm: 8kg.cm

reaction time.20ms

frequency fluctuation: 0.10hz

No-load Current:0.9-1.1 A; Voltage: 3-9 V

Full-load Current:1.1-1.5 A; Voltage: 10-12 V

Use for 0-500kw.DC 24V control system.closed type diesel generator .

Compatible EFC:3044196

Weight:0.95KG

Other model Actuator:

3408324----24V, Used in <500KW normally closed diesel generator;

3408326----24V, Used for > 500KW normally closed diesel generator

3408328----24V, Used for <500KW normally open diesel generator;

3408329----24V, Used for > 500KW normally open diesel generator
